Distribution Pump
– Magnetic pumps for chiller coolant transfer (Magnetic Pump), exclusively distributed to the semiconductor and display markets
– Completely leak-free pump design
– Completely leak-free pump design

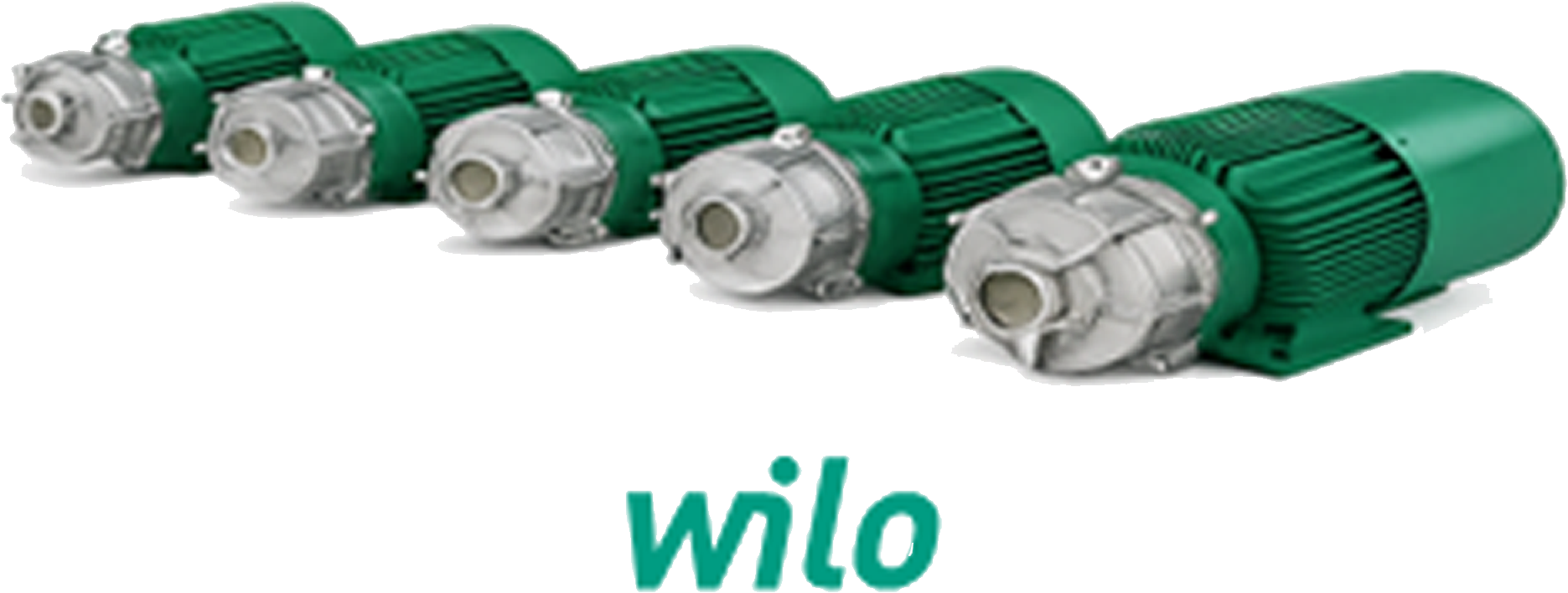

PM &PMD Series
Stainless Steel Magnetic Pump
Applications
– General industrial processes
– Low- and high-temperature circulation
– Key components for mechanical equipment
– Chemical fluid circulation
– Chiller and semiconductor / LCD manufacturing processes
– Low- and high-temperature circulation
– Key components for mechanical equipment
– Chemical fluid circulation
– Chiller and semiconductor / LCD manufacturing processes
| ① PM | ② 15K | ③ S | ④ I | ⑤ P |
| Model Type | Rated Output | Material | Power Supply | Motor Option |
| PM : Magnet Driven Pump PMD : High- Efficient Magnet Driven Pump | 15K : 1.85kW 22K : 2.2kW 30K : 3.0kW | STS316 | 1~3Ø 220/380V 60Hz | - : IE2 P : IE3 L : LSPM S : IE4 |
Key Features
Excellent Chemical Resistance and Durability
– Stainless steel is applied to provide outstanding durability and chemical resistance.
– Ceramic silicon carbide is applied to the shaft bearing to prevent wear, and epoxy coating is applied to the motor exterior to minimize corrosion.
– Stainless steel is applied to provide outstanding durability and chemical resistance.
– Ceramic silicon carbide is applied to the shaft bearing to prevent wear, and epoxy coating is applied to the motor exterior to minimize corrosion.
High Performance · Low Noise · High Efficiency Motor
– A low-noise motor and powerful magnets are applied, minimizing fluid loss.
– Optimized design ensures compact size while delivering excellent performance.
High Heat Resistance
– High-quality materials are used, allowing the pump to withstand high-temperature fluids up to 200 °C.
Simple and Easy Maintenance Structure
– A simple pump structure and component design make disassembly, inspection, and reassembly easy.

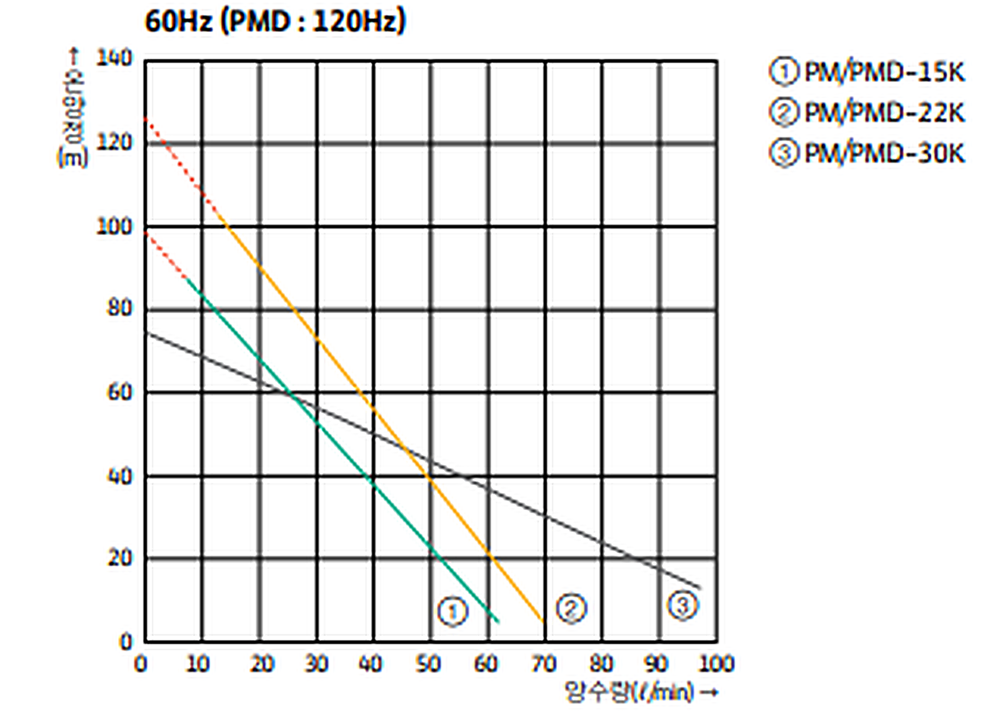

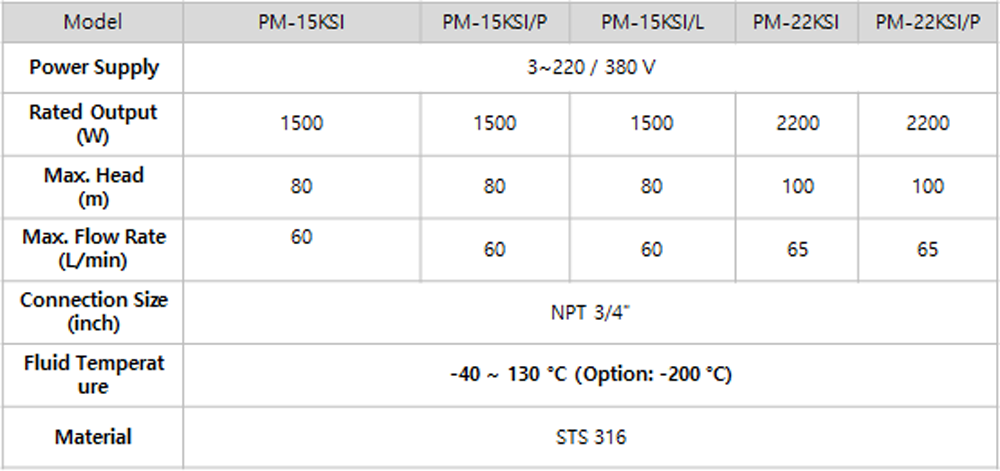

Technical Specifications

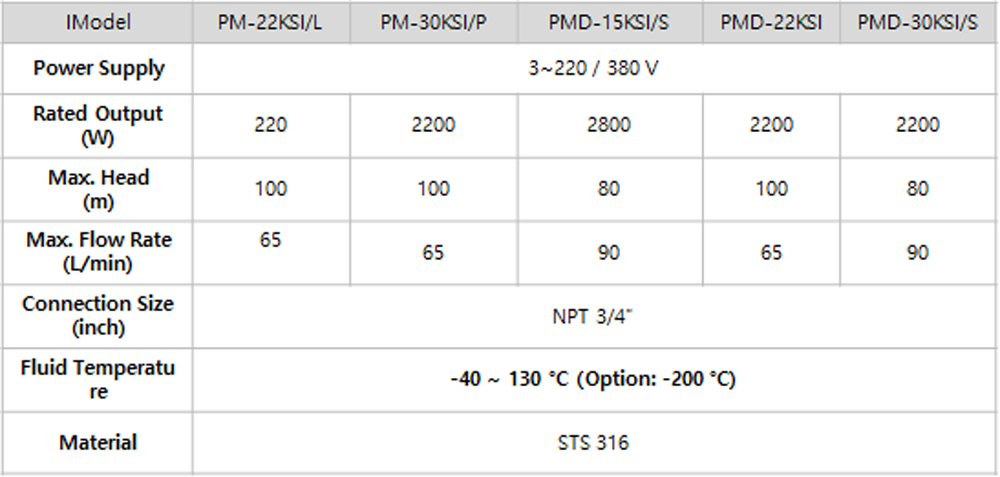

Technical Specifications

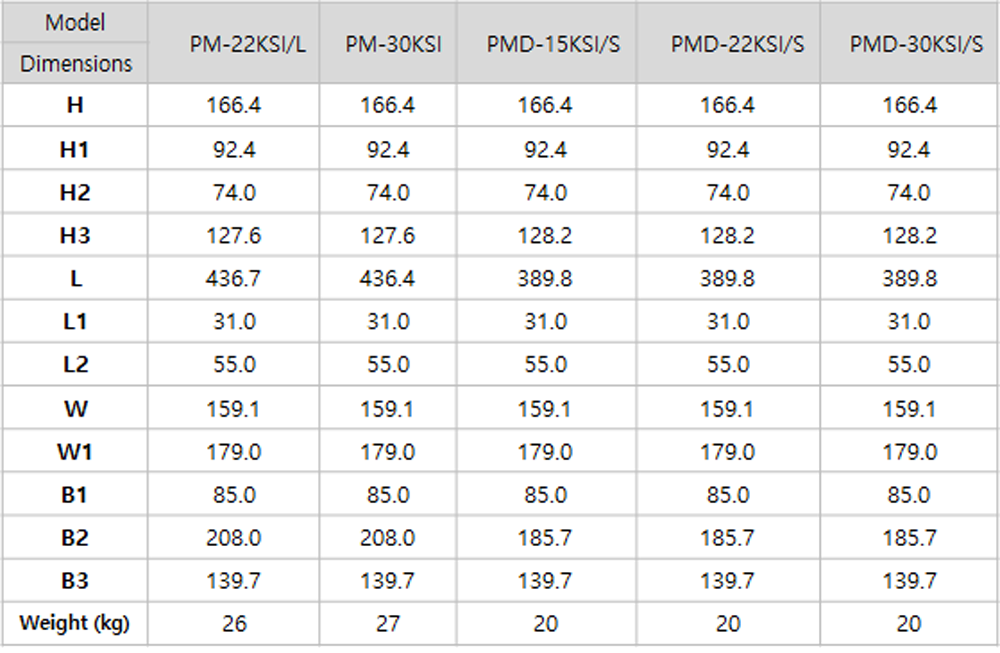

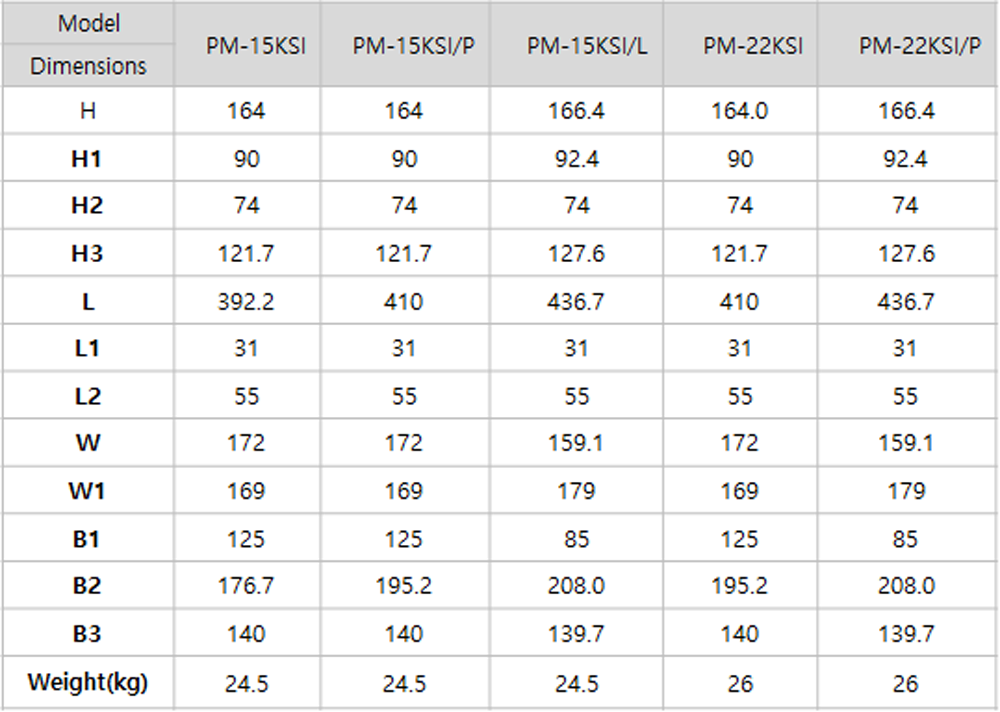

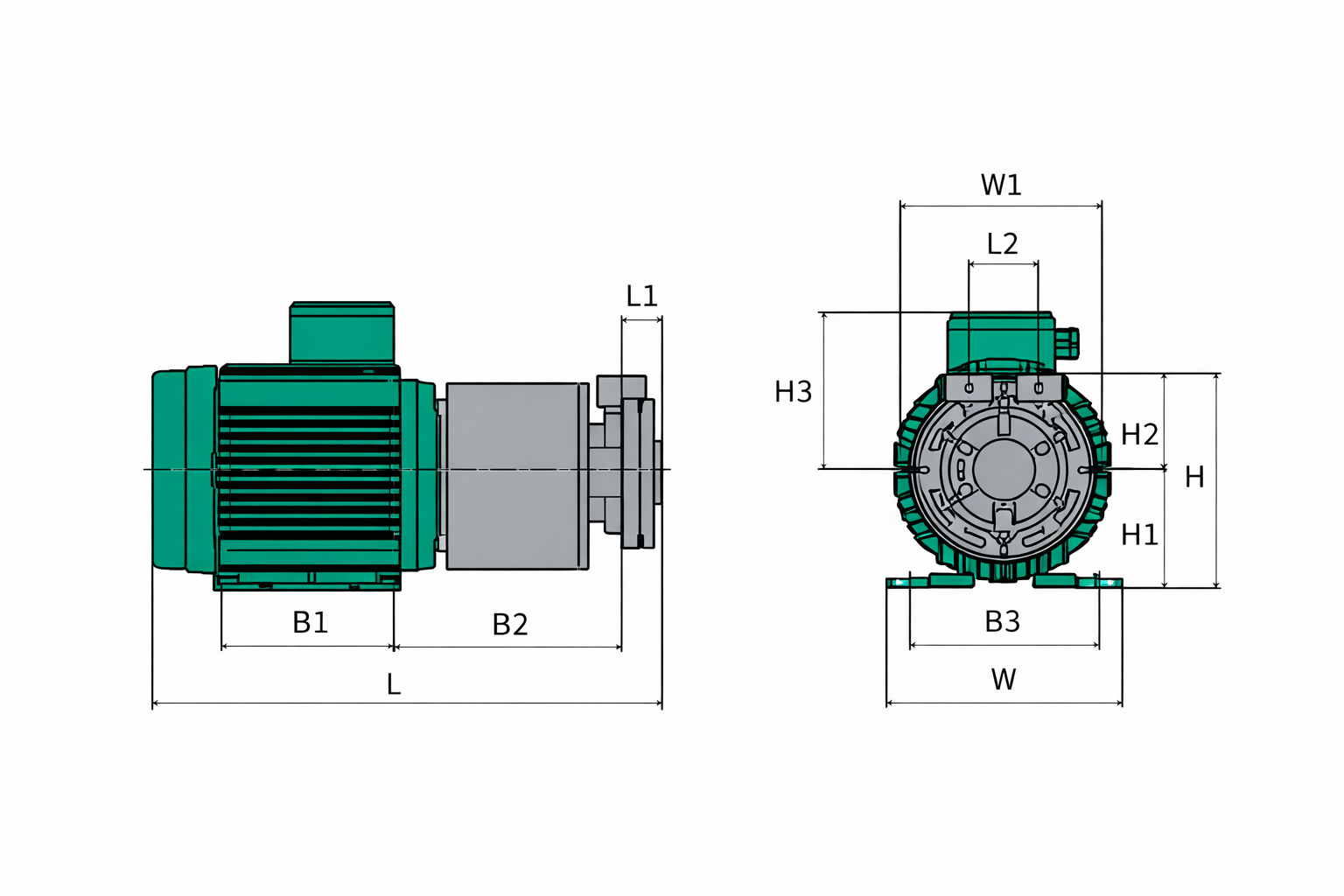

Dimensional Drawing
